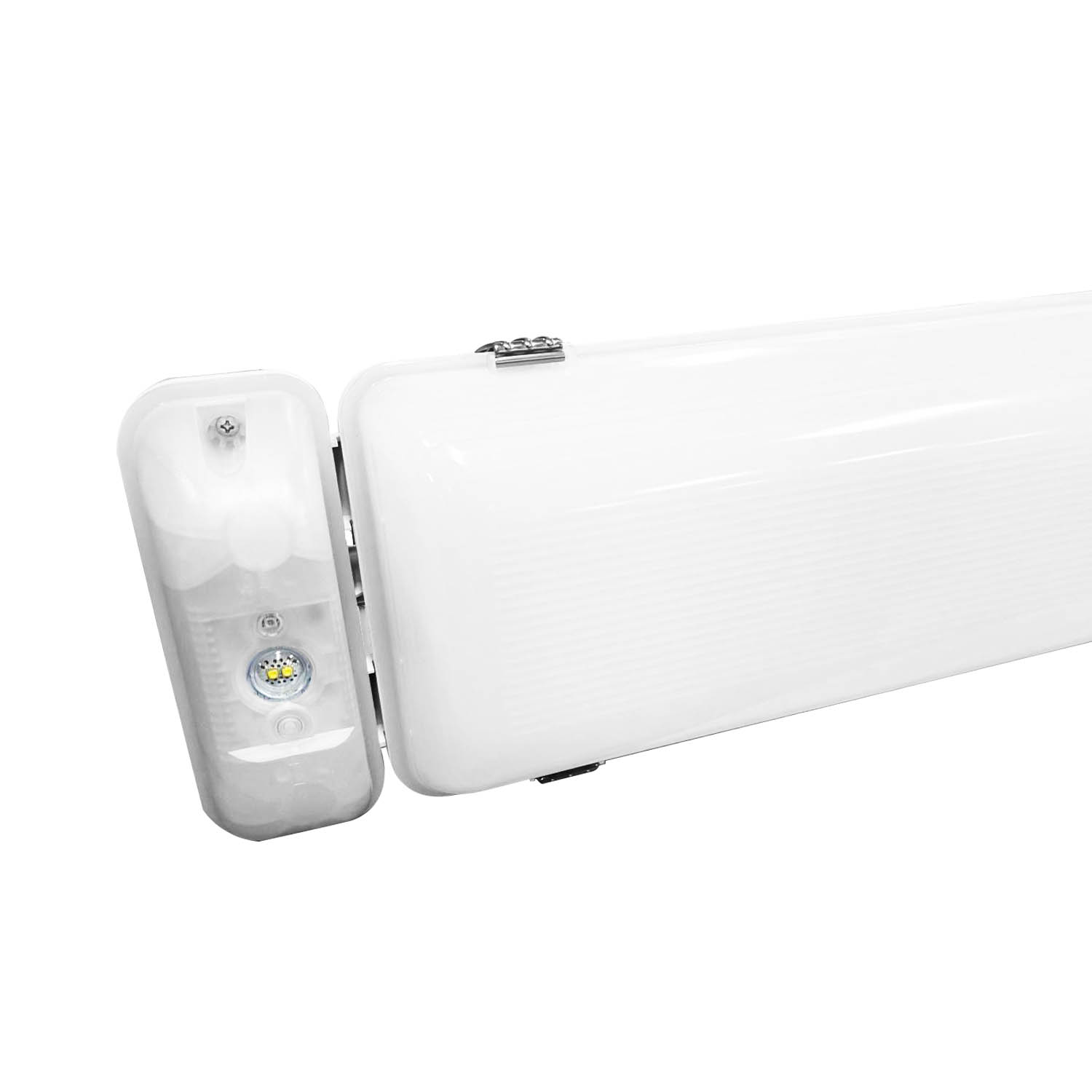

clevertronics emergency lighting linear weatherproof UK Argonaut Pro 600 with Pod

Argonaut Pro Weatherproof Batten with Pod 600mm

ANZ_Argo_Pro_1200_45

Argonaut Pro Weatherproof Batten 1200mm

clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1200

Argonaut Pro Weatherproof Batten 1200mm

clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1200

Argonaut Pro Weatherproof Batten 1200mm

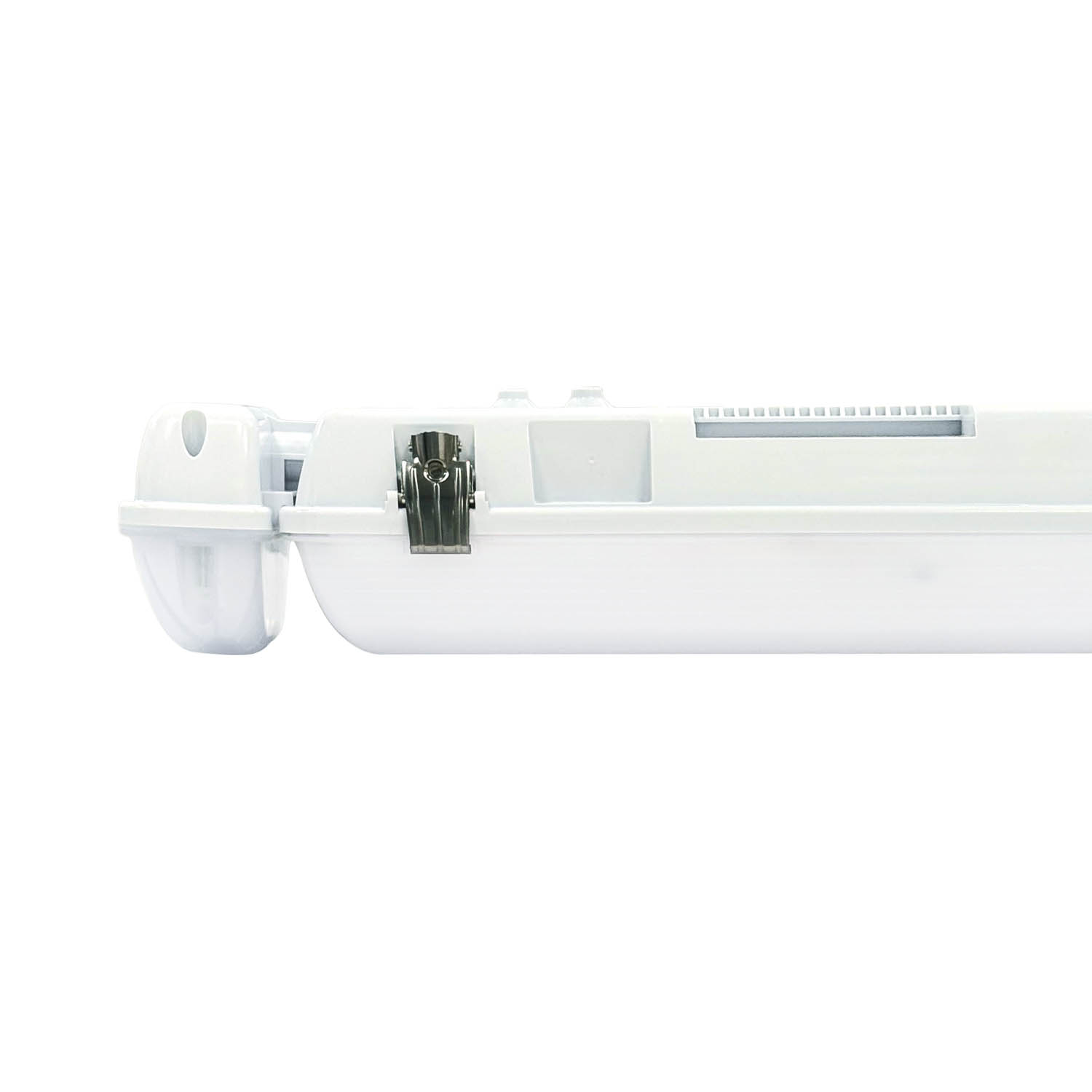

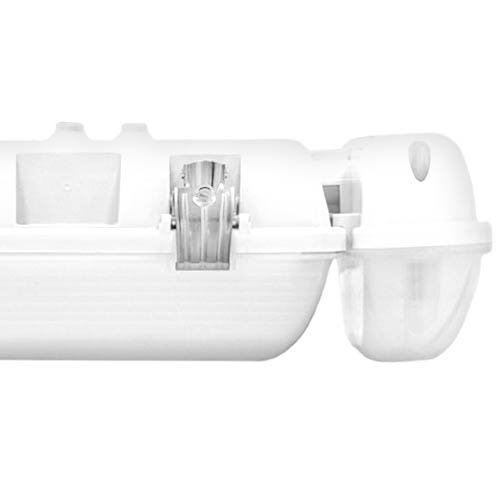

clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1200 with Pod

Argonaut Pro Weatherproof Batten with Pod 1200mm

clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1200 with Pod

Argonaut Pro Weatherproof Batten with Pod 1200mm

clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1500

Argonaut Pro Weatherproof Batten 1500mm

clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1500

Argonaut Pro Weatherproof Batten 1500mm

clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1500

Argonaut Pro Weatherproof Batten 1500mm

clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1500 with Pod

Argonaut Pro Weatherproof Batten with Pod 1500mm

UK_Argo_Insitu

Argonaut Pro Weatherproof Batten Insitu

clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1500 with Pod

Argonaut Pro Weatherproof Batten with Pod 1500mm

clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1500 with pod

Argonaut Pro Weatherproof Batten with Pod 1500mm

Imaged added to CleverSpec

/sites/default/files/2021-10/ANZ_Argo_Pro_1200_HeroImage_0.png
clevertronics emergency lighting linear weatherproof UK Argonaut Pro 600
clevertronics emergency lighting linear weatherproof UK Argonaut Pro 600
clevertronics emergency lighting linear weatherproof UK Argonaut Pro 600 with Pod
ANZ_Argo_Pro_1200_45
clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1200
clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1200
clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1200 with Pod
clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1200 with Pod
clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1500
clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1500
clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1500
clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1500 with Pod
UK_Argo_Insitu
clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1500 with Pod
clevertronics emergency lighting linear weatherproof UK Argonaut Pro 1500 with pod

Argonaut PRO Weatherproof
Batten

Ultimate Spec & Efficiency, Configurable Quad Output

The all new Argonaut PRO range is designed to maximise LED efficiency with the highest product performance and LED lifetime. Featuring configurable quad output, they maximise efficiency by delivering up to 152lm/W. The Argonaut PRO batten range is available as a Standard or Emergency LP or L10 Nanophosphate with monitoring capabilities including Zoneworks XT HIVE, DALI and CTP and is backed by Clevertronics support, service and warranty,

Compliance

  • AS/NZS 2293.3

    AS/NZS 2293.3

  • Regulatory Compliance Mark

    Regulatory Compliance Mark

Range & Testing Compatibility

  • Standard

    Standard

  • LP

    LP Premium Lithium

  • L10

    L10 Lithium Nanophosphate

  • Zoneworks XT HIVE

    Zoneworks XT Hive

  • Clevertest Plus System

    Clevertest Plus

  • dali-icon-grey

    DALI

Product Length Output Power CCT Lumens Lumens/Watt
Product Length Output Power CCT Lumens Lumens/Watt
Standard- Argonaut Pro 600mm
600mm
1
18W
4000K
2564lm
140lm/W
Product Length Output Power CCT Lumens Lumens/Watt
Product Length Output Power CCT Lumens Lumens/Watt

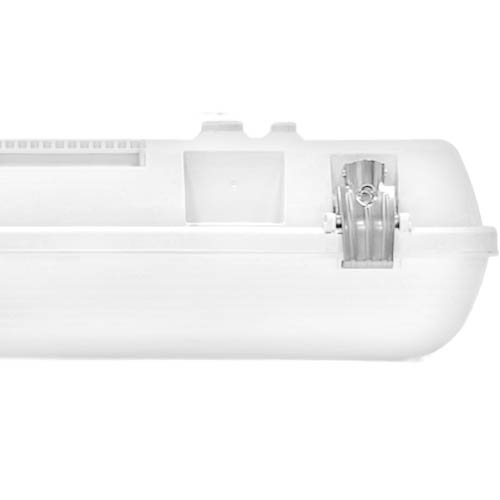

Standard - Argonaut Pro 1200mm
1200mm
1
2
3
4
24W
31W
37W
42W
4000K
3541lm
4660lm
5495lm
6259lm
150lm/W
152lm/W
150lm/W
149lm/W
Product Length Output Power CCT Lumens Lumens/Watt
Product Length Output Power CCT Lumens Lumens/Watt
Standard - Argonaut Pro 1500mm
1500mm
1
2
43W
58W
4000K
6358lm
8498lm
149lm/W
146lm/W

* Specifications based on non-emergency batten.

Product Specifications

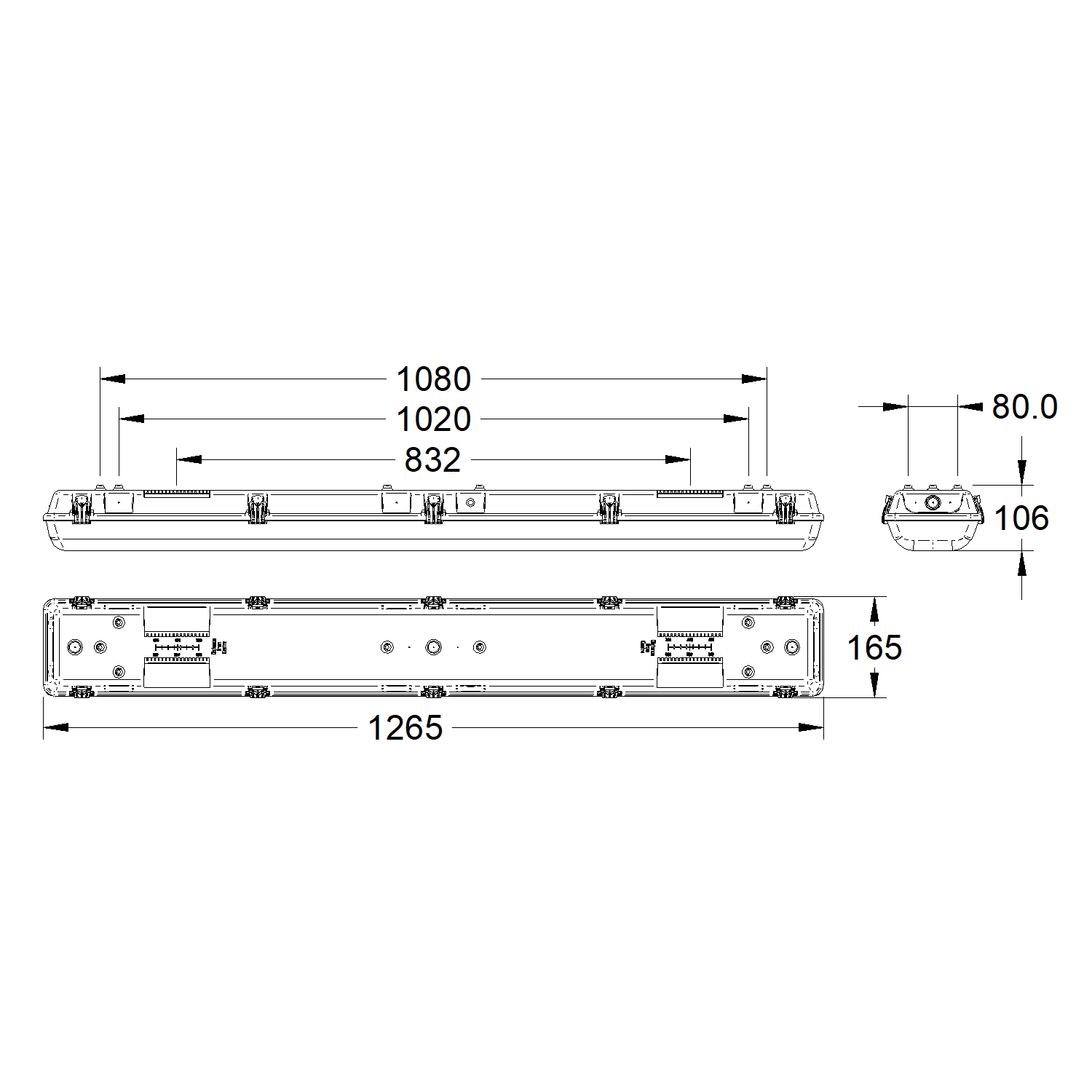

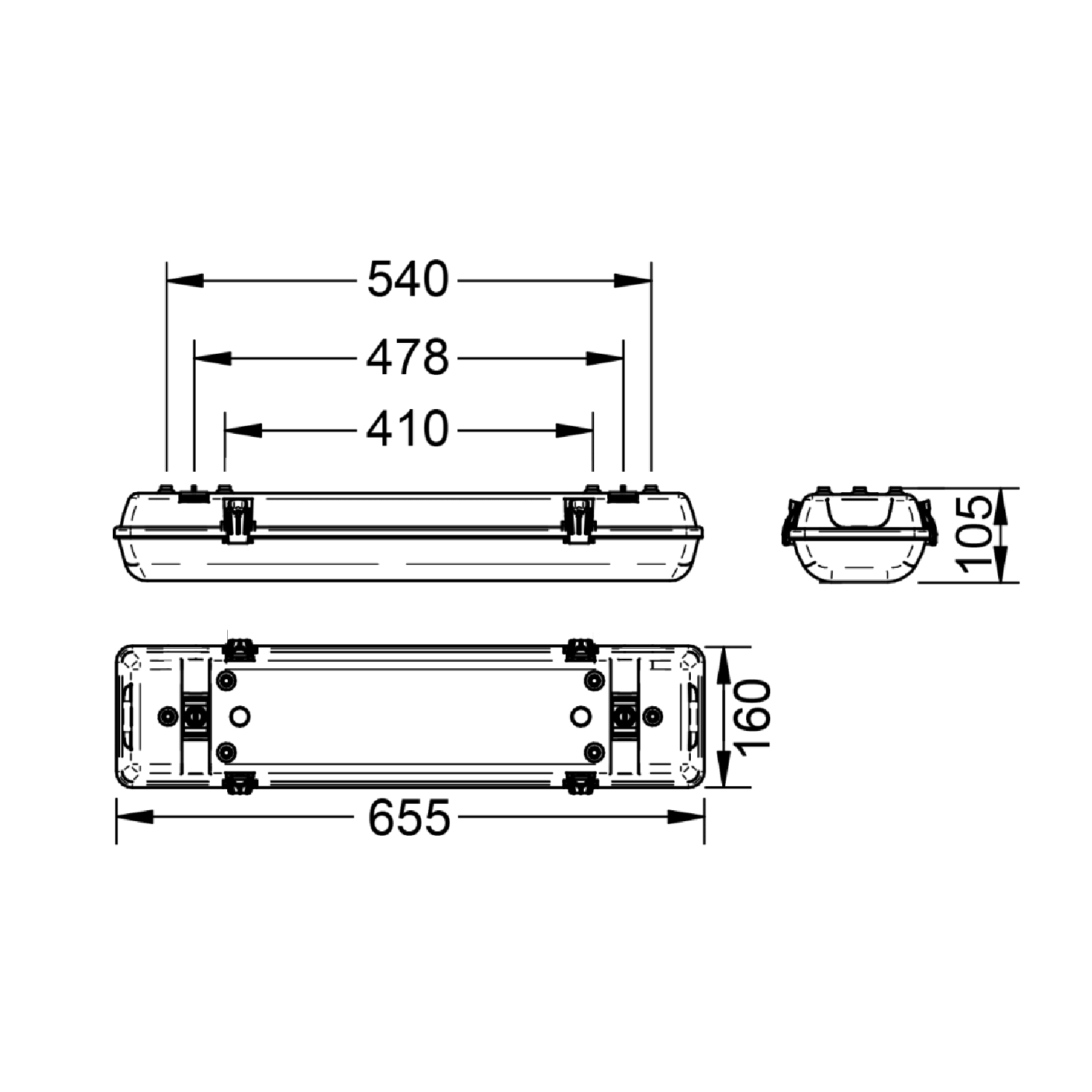

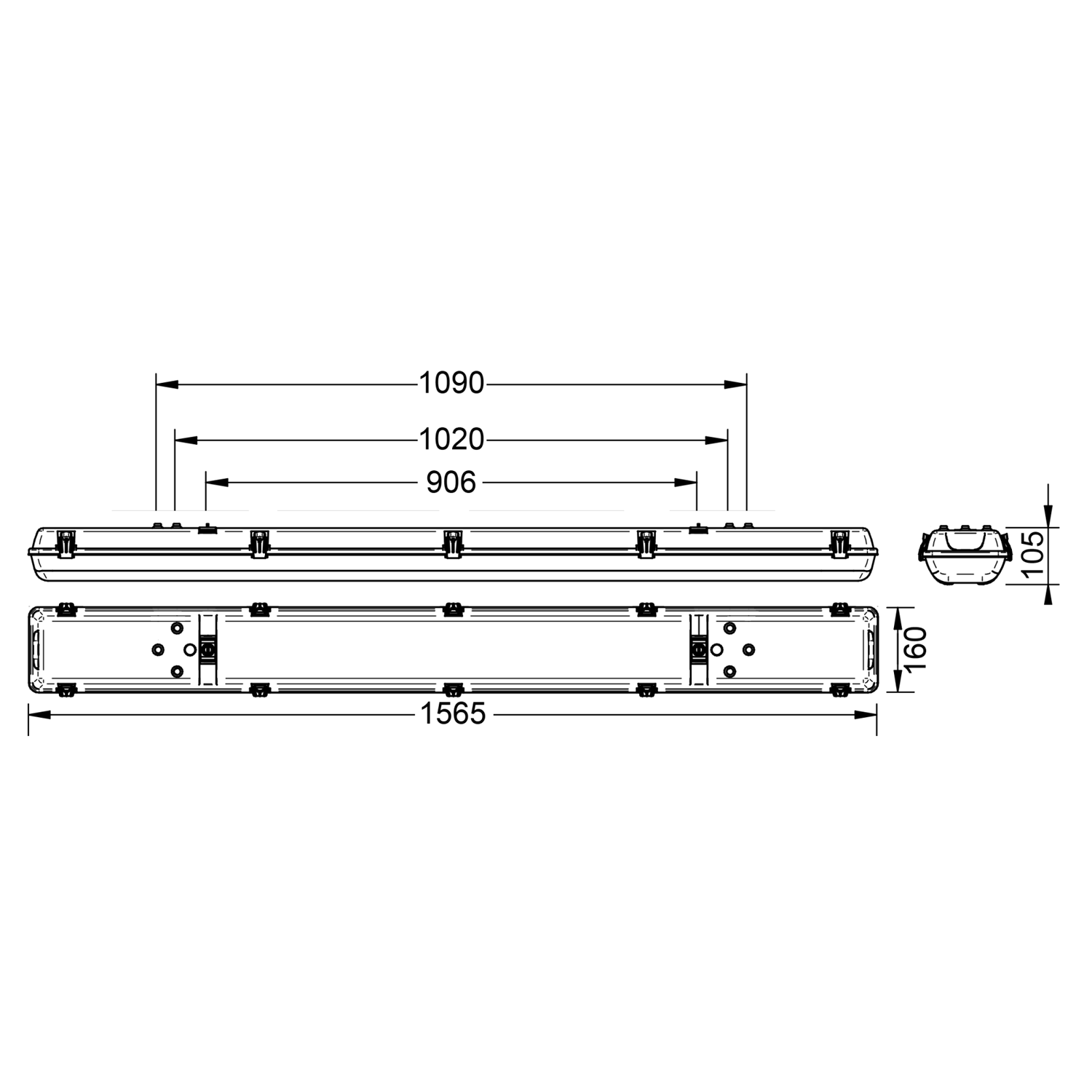

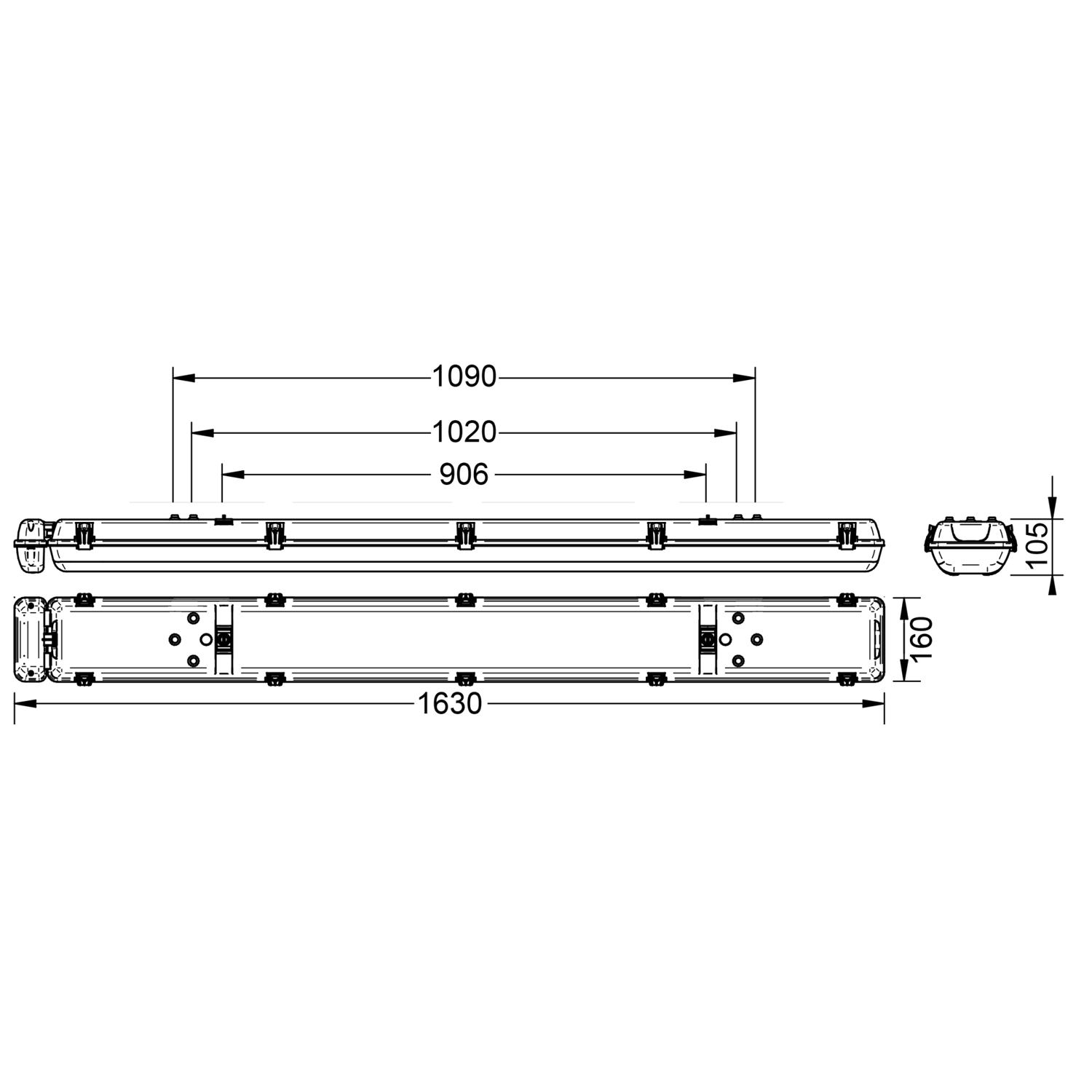

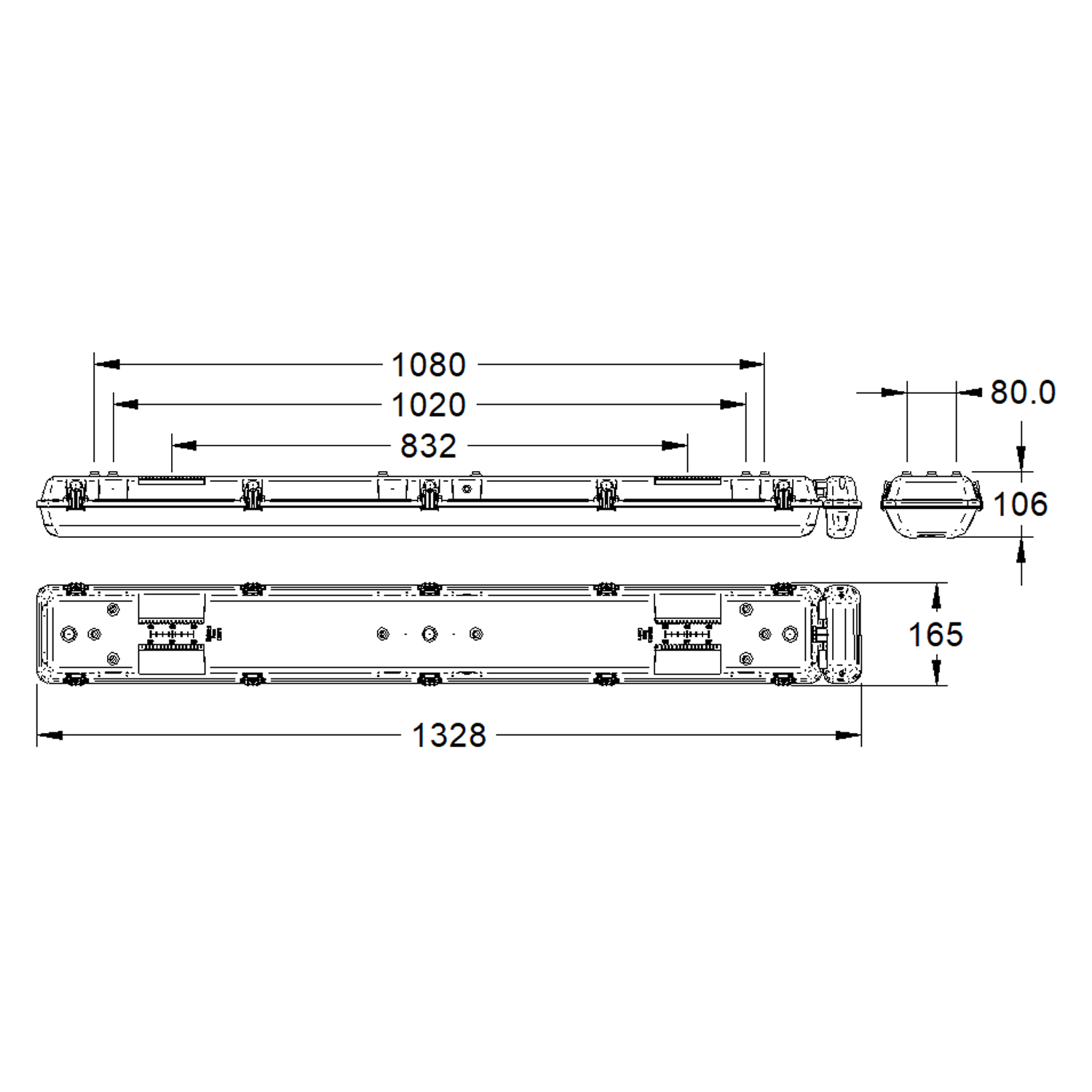

Line Diagrams

Photometry Polar Curves

DATASHEET BROCHURE IES SDOC REVIT INSTALL GUIDE

Argonaut PRO Weatherproof Batten family data files can be downloaded here, for a specific model use the search filters below. To request assistance from your local Clevertronics office, use the Contact form at the bottom of the page.

Clevertronics Product
AUD
Format: 9.99

Specifying a project? UseĀ our technical documentation search

Find the documents you need for a specification with our technical resource search. All our product technical files and downloads in one space.

Choose an emergency lighting solution

Select the right range and testing option solution for your project or application.
If you are not sure what you need, check out our solutions page for quick guide.

Range Comparison Clevertronics LP Premium Logo Clevertronics L10 Optimum Logo
Maintenance Savings vs. NiCD
50%
80%
Standard Clevertest Plus
Yes
Yes
Cost of ownership
Low
Lowest
Battery Life
+8 Years
+12 Years
Option Comparison Clevertronics Clevertest Plus System logo Clevertronics Zoneworks XT Hive logo
Testing Method
Self testing
Remote monitor & test
Lifetime system support
No
Yes
Electronic Reporting & Maintenance Log
Yes
Yes
